SleeperFit Railway Sleeper Joining Plate Bracket (8 Sizes Available)

SleeperFit Railway Sleeper Joining Plate Bracket (8 Sizes Available)

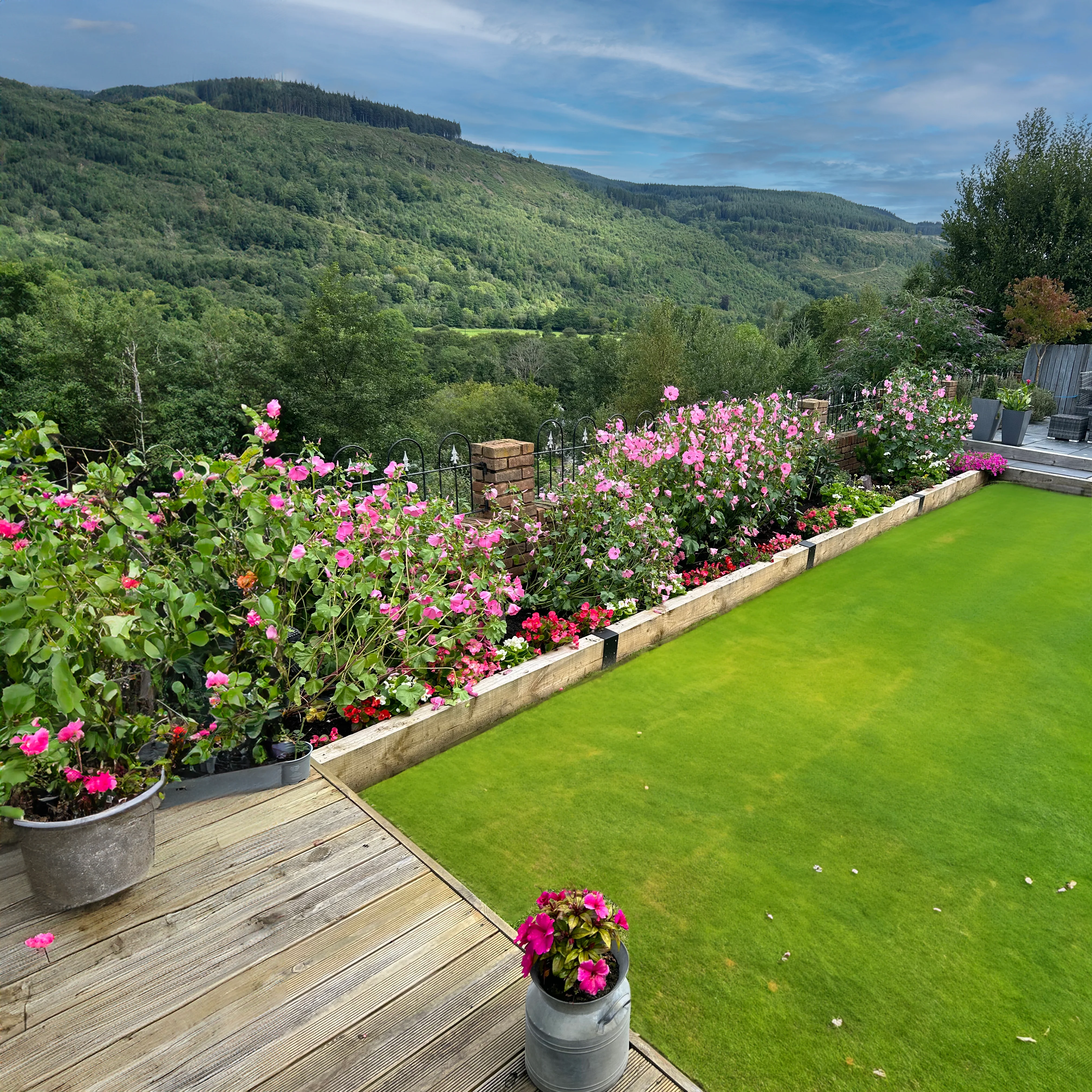

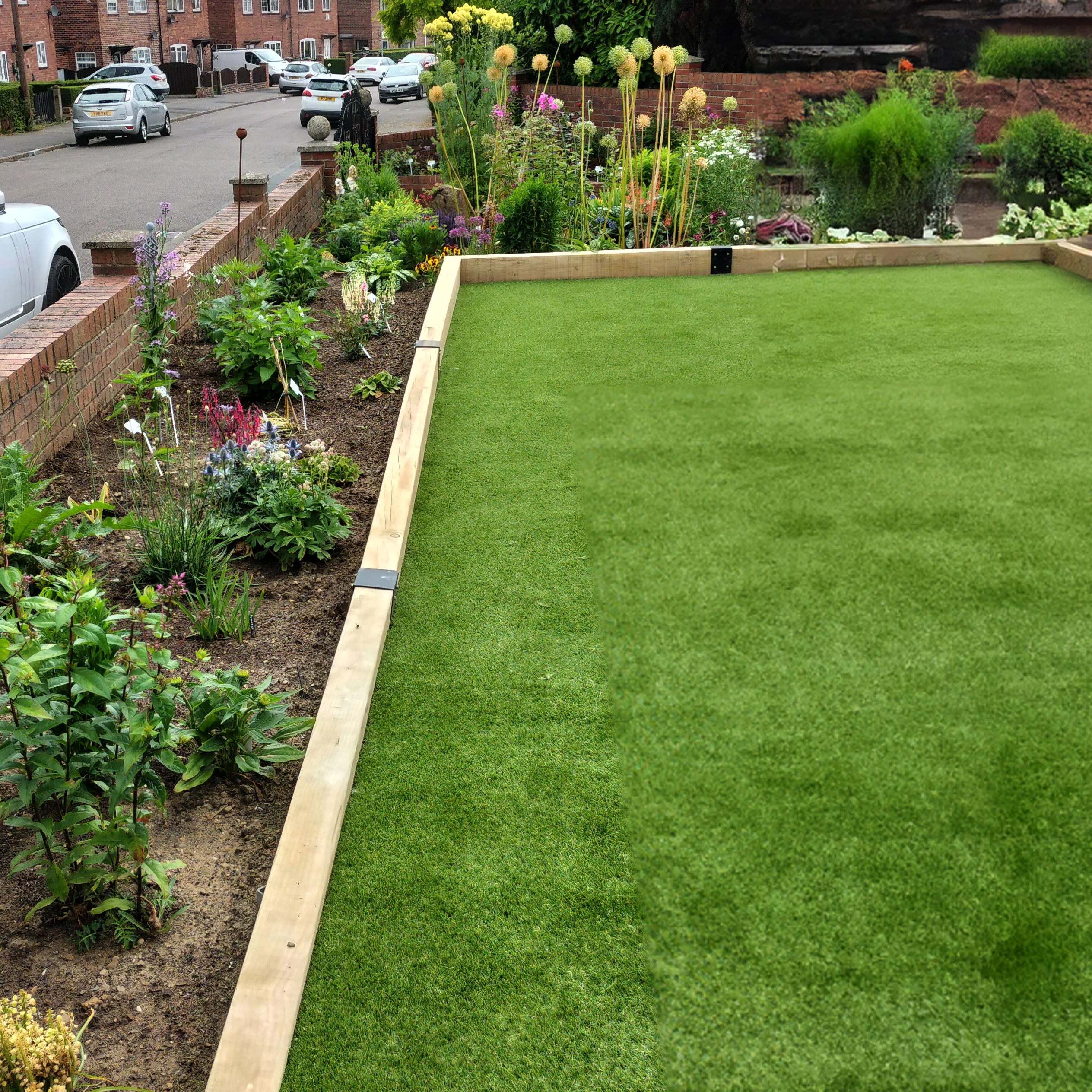

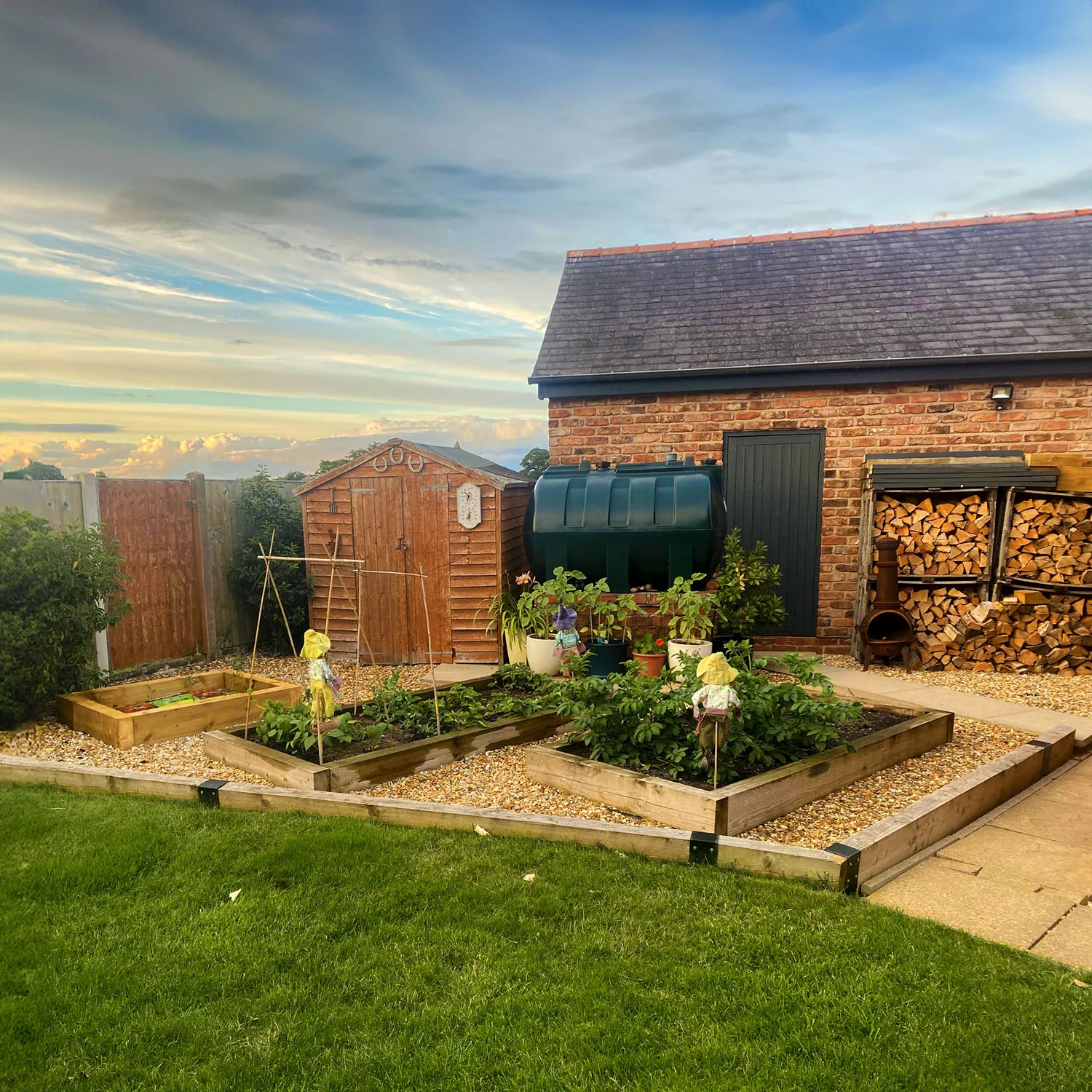

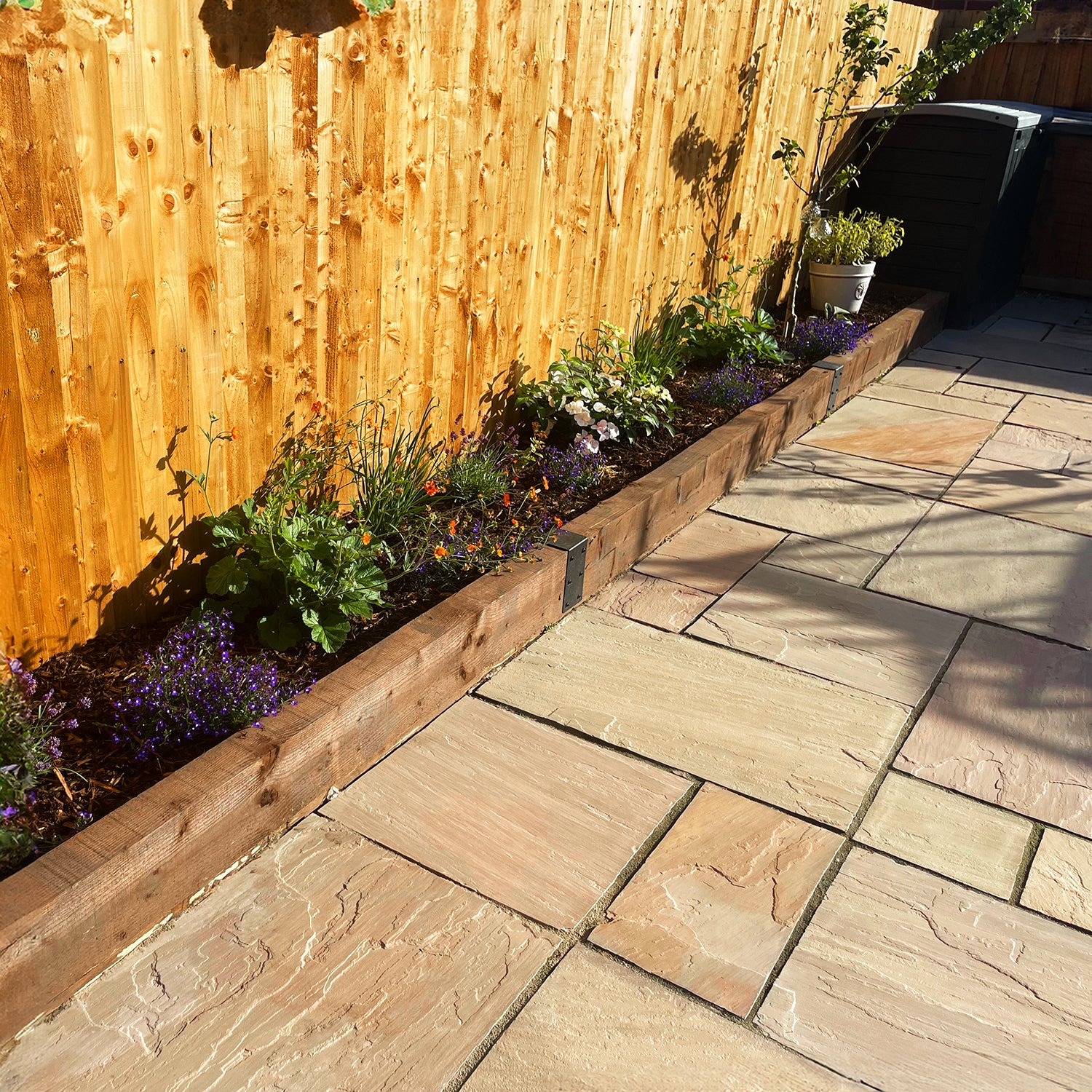

This heavy-duty Railway Sleeper Joining Plate Bracket is designed to give strength and stability to straight joins between two railway sleepers. It’s ideal for building raised beds, edging, shuttering forms or retaining walls where strong timber-to-timber joins are essential.

Each bracket is made from 2mm thick British steel and finished in a tough black powder coat, which helps protect against rust and weathering. It features a 90-degree fold and seven 7.5mm holes for screws, providing strong corner reinforcement when joining two pieces of timber at a straight edge.

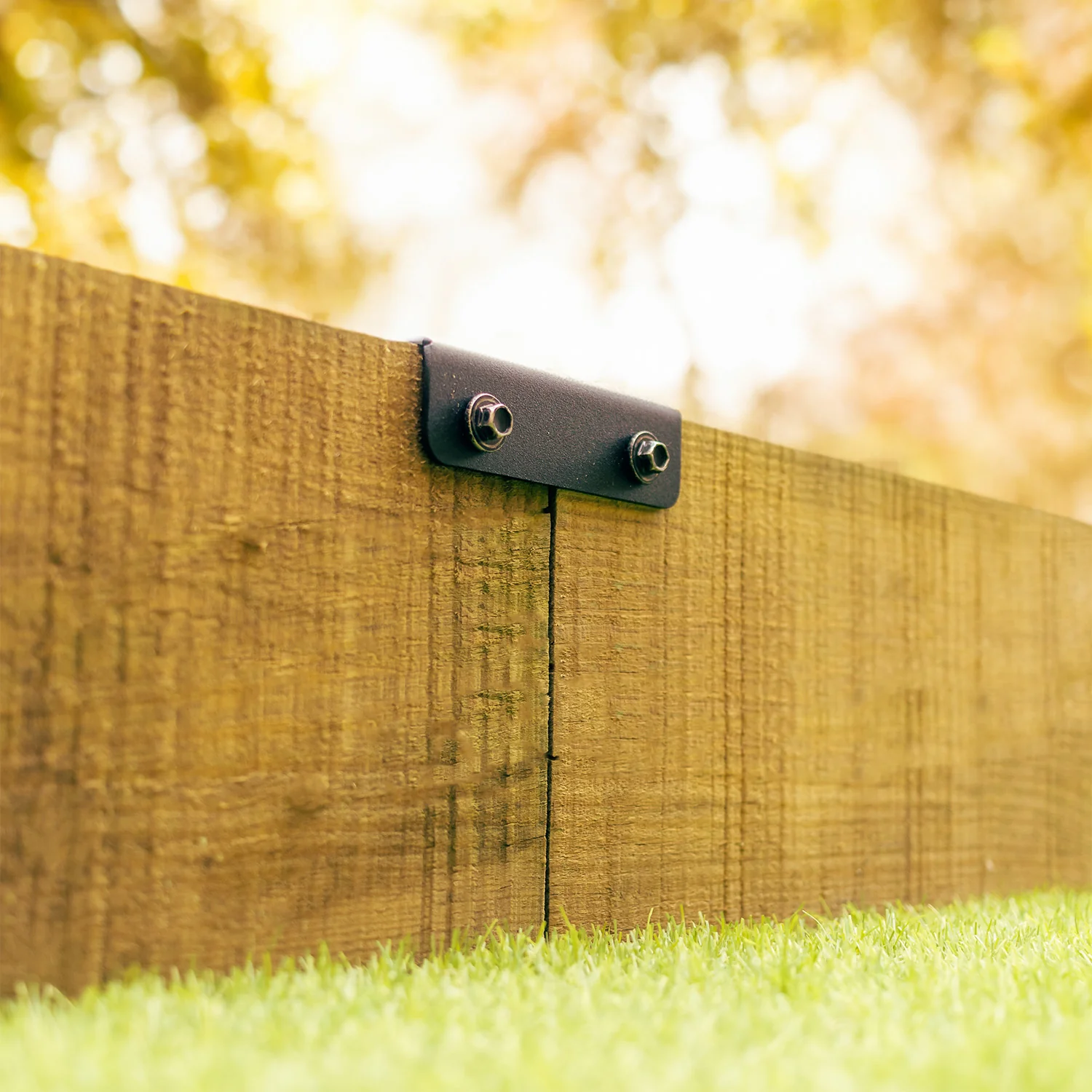

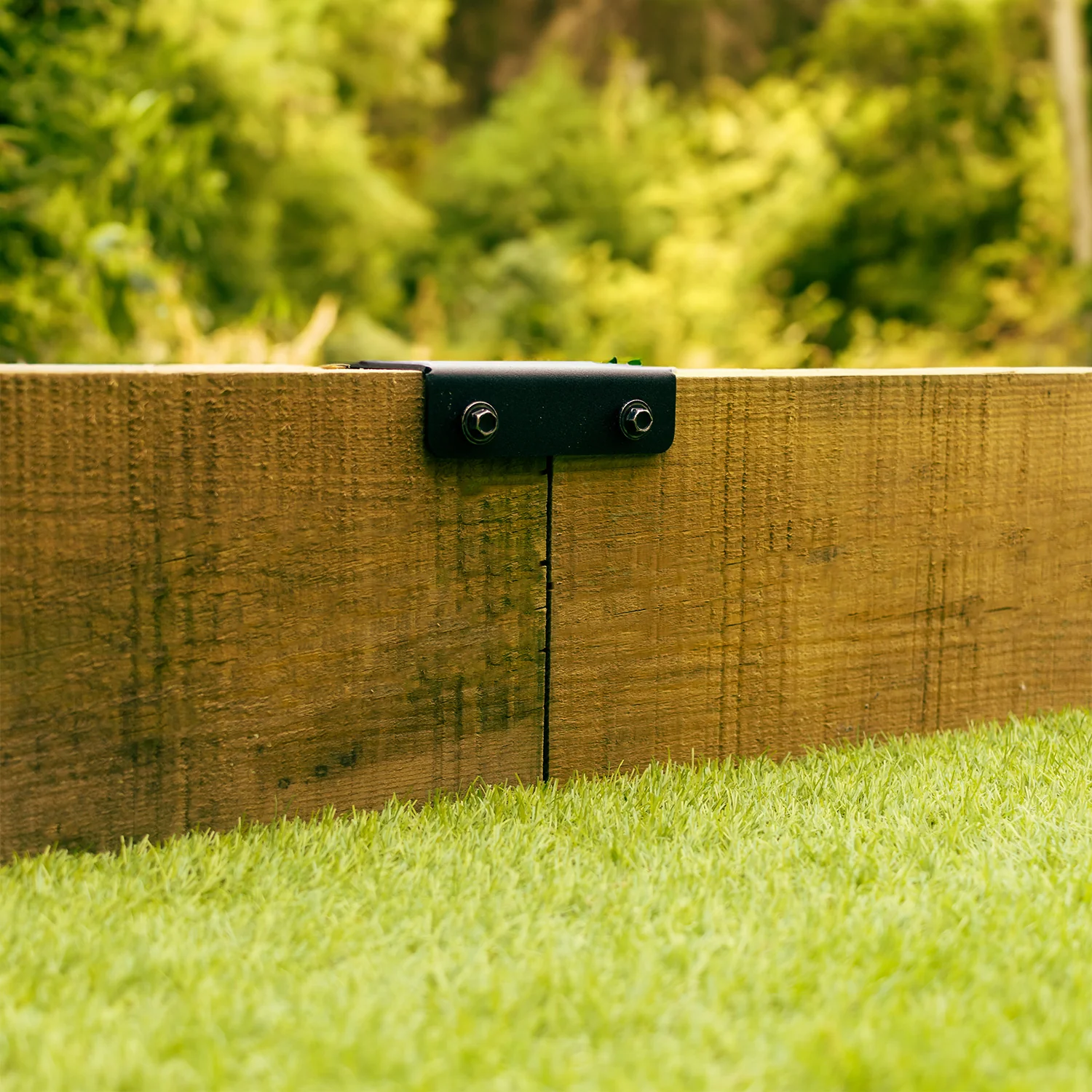

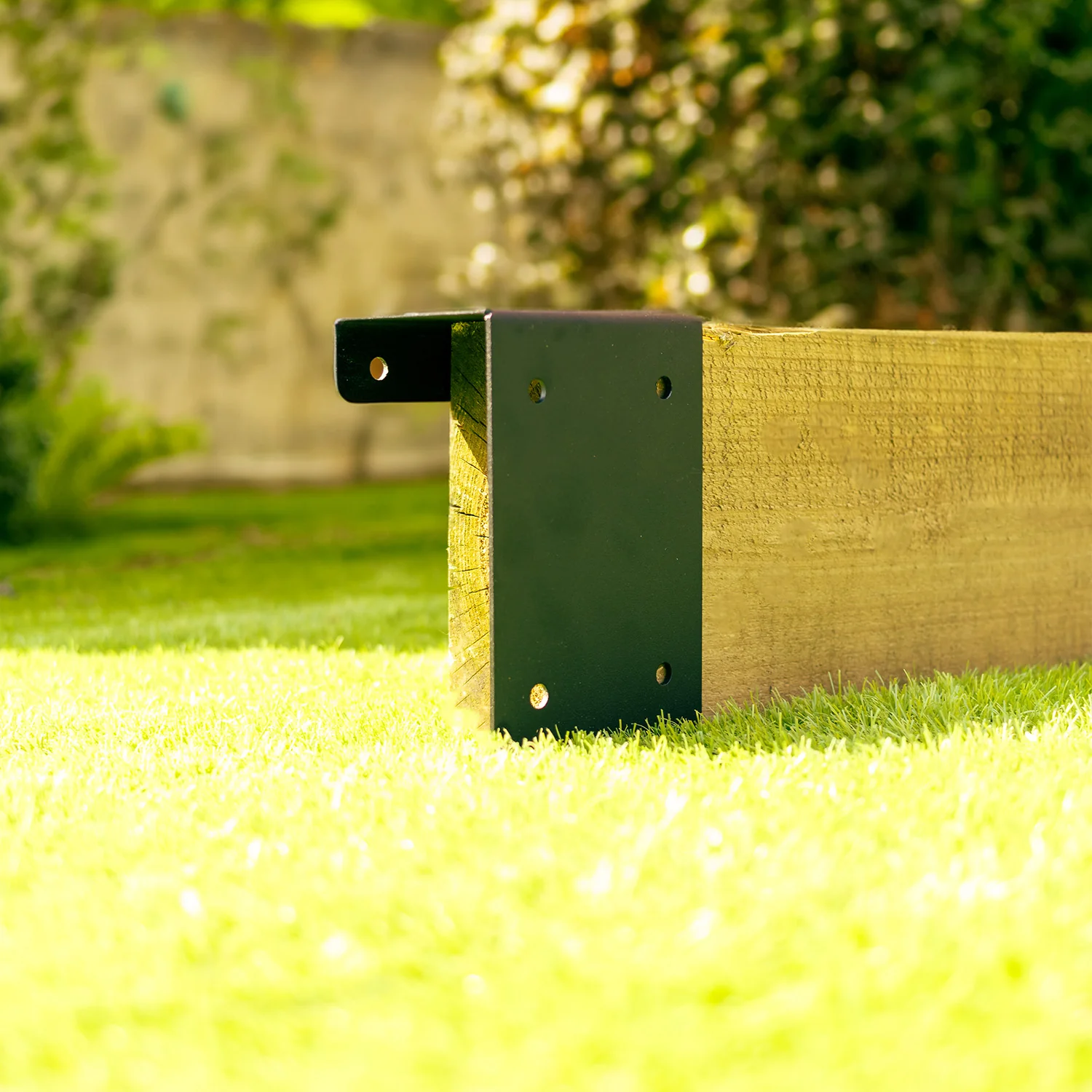

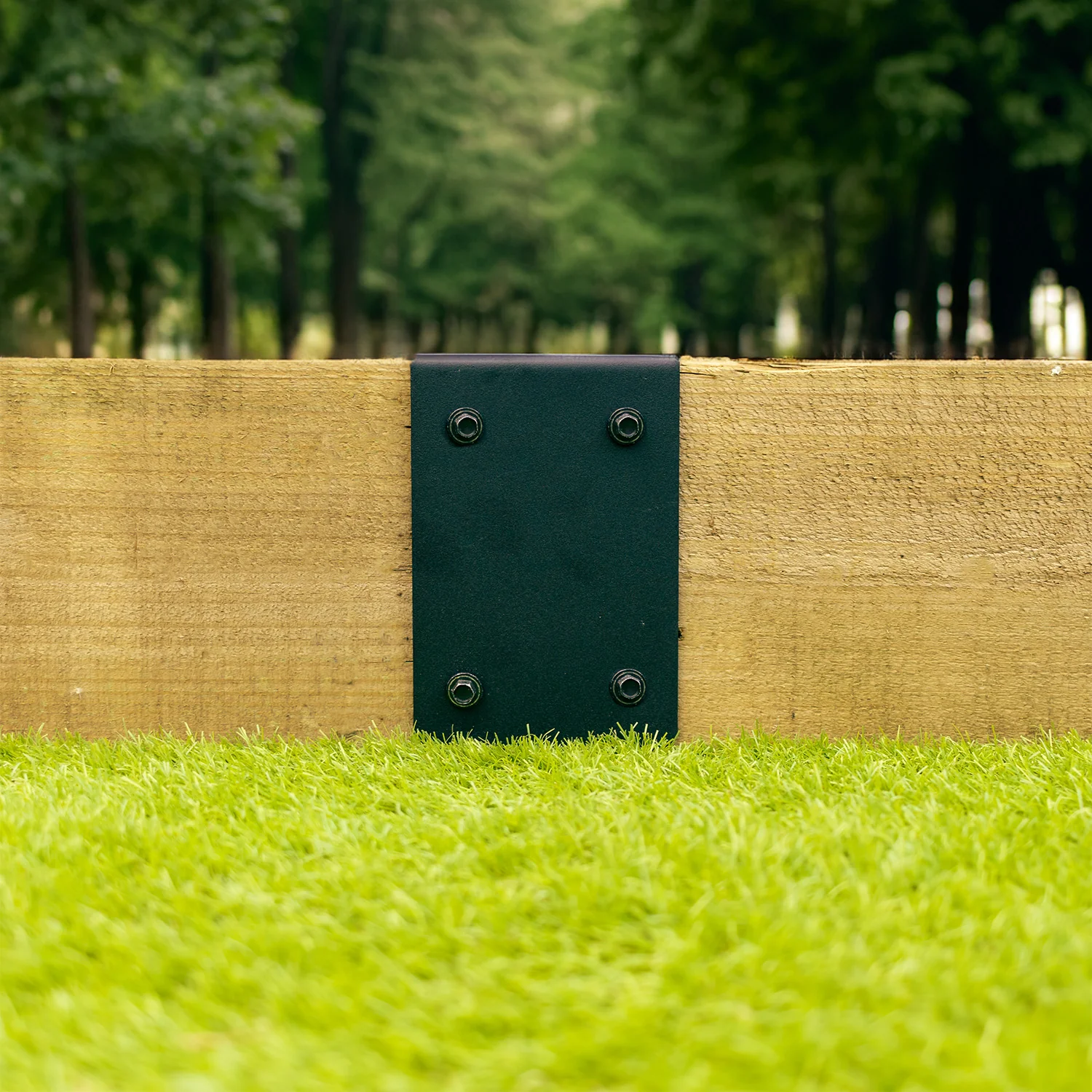

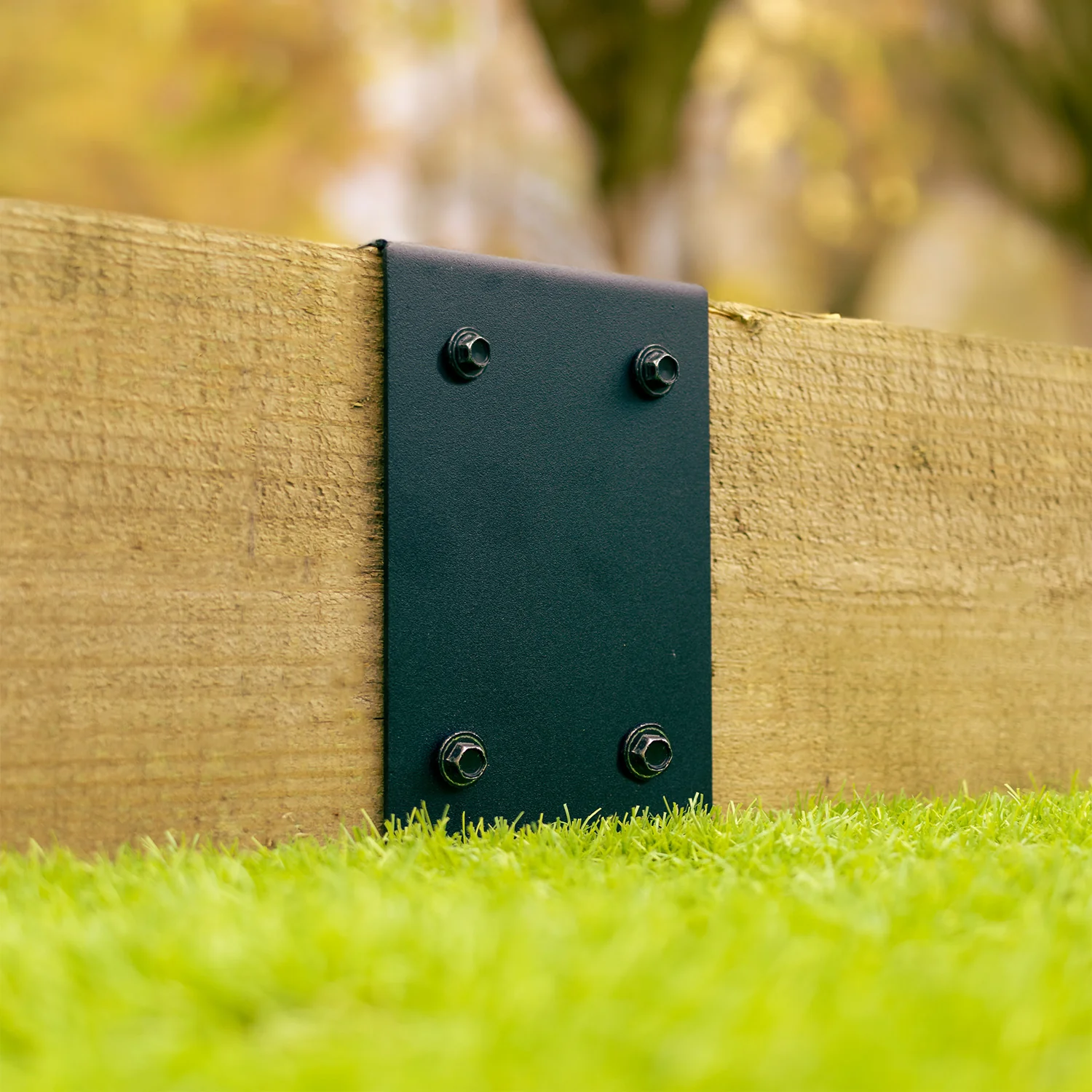

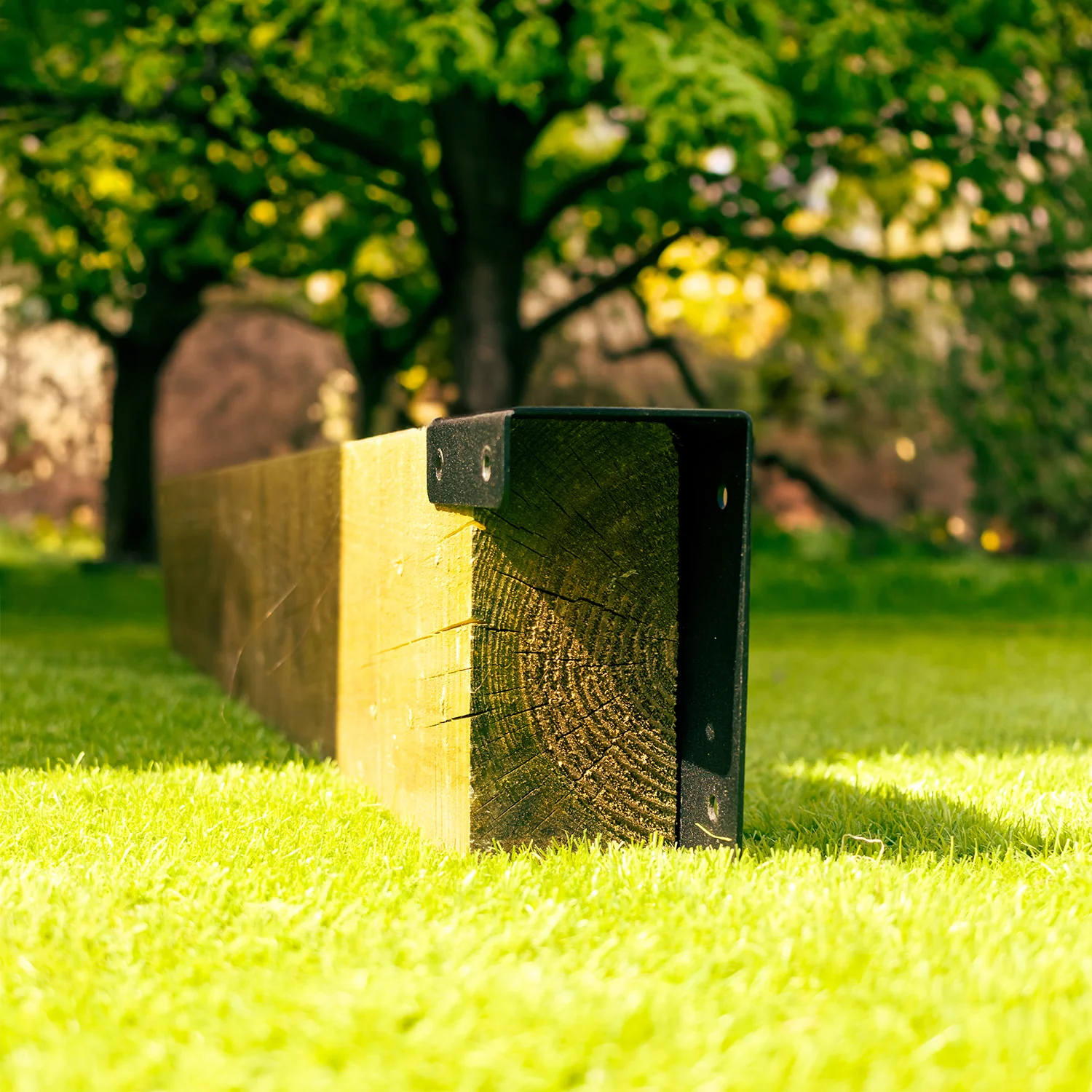

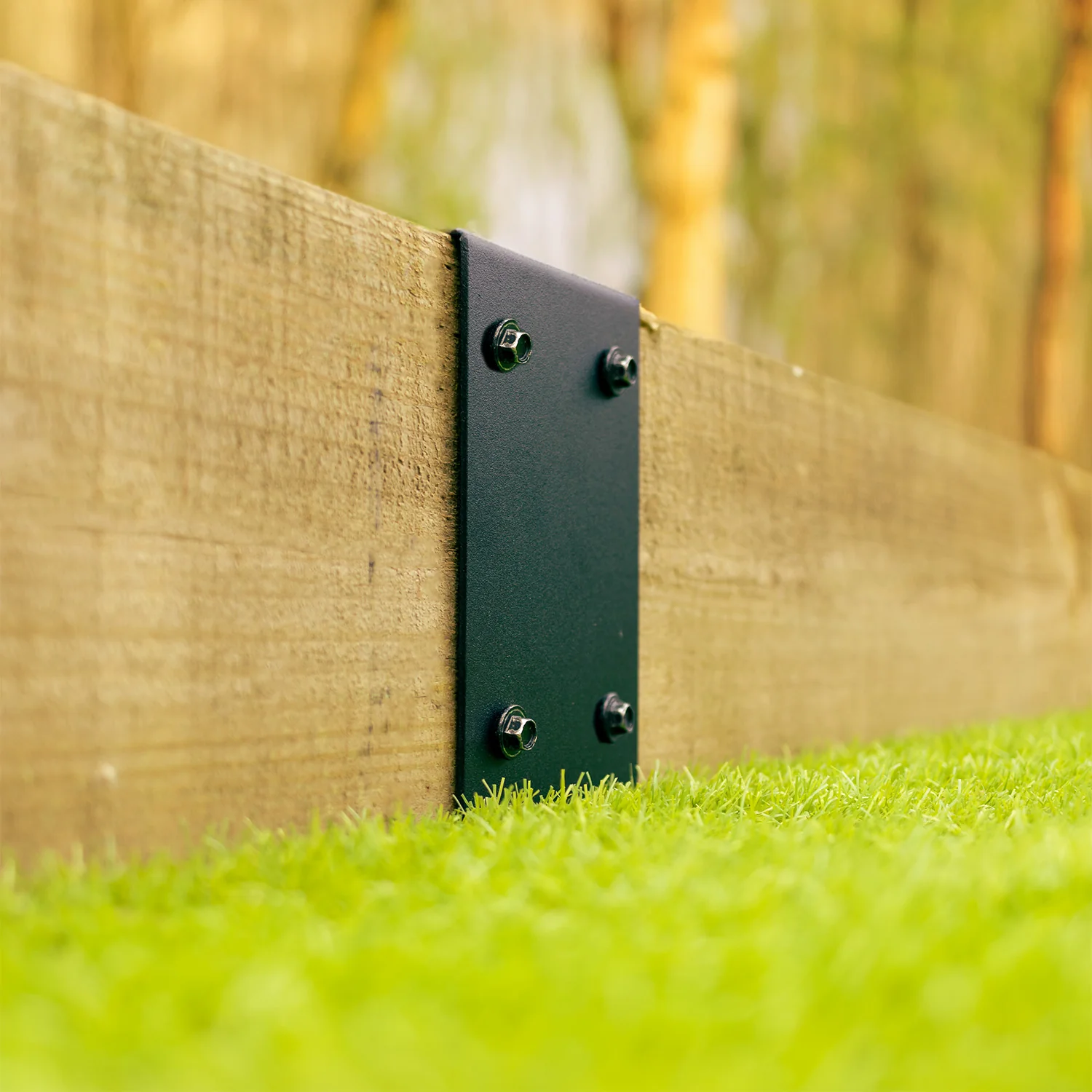

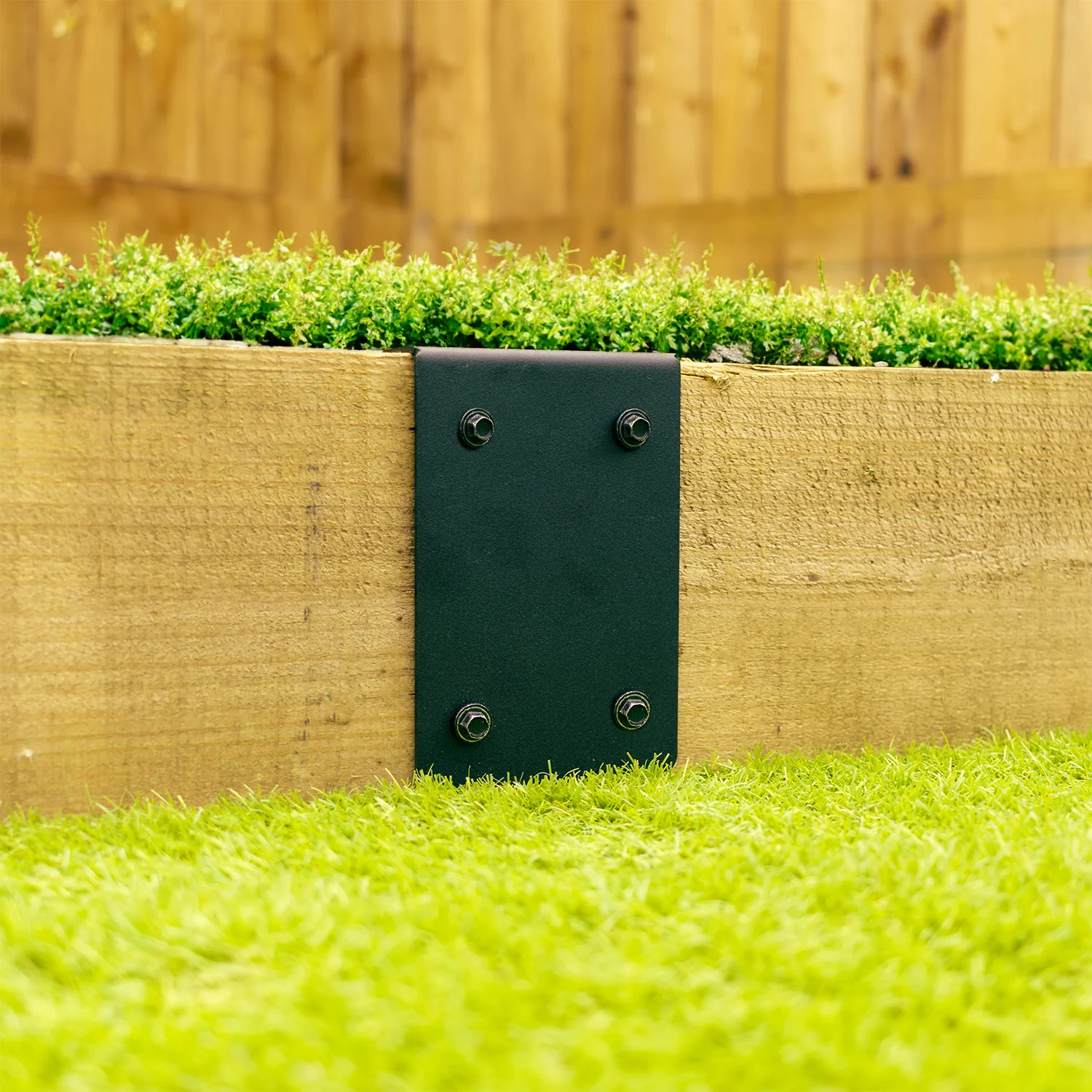

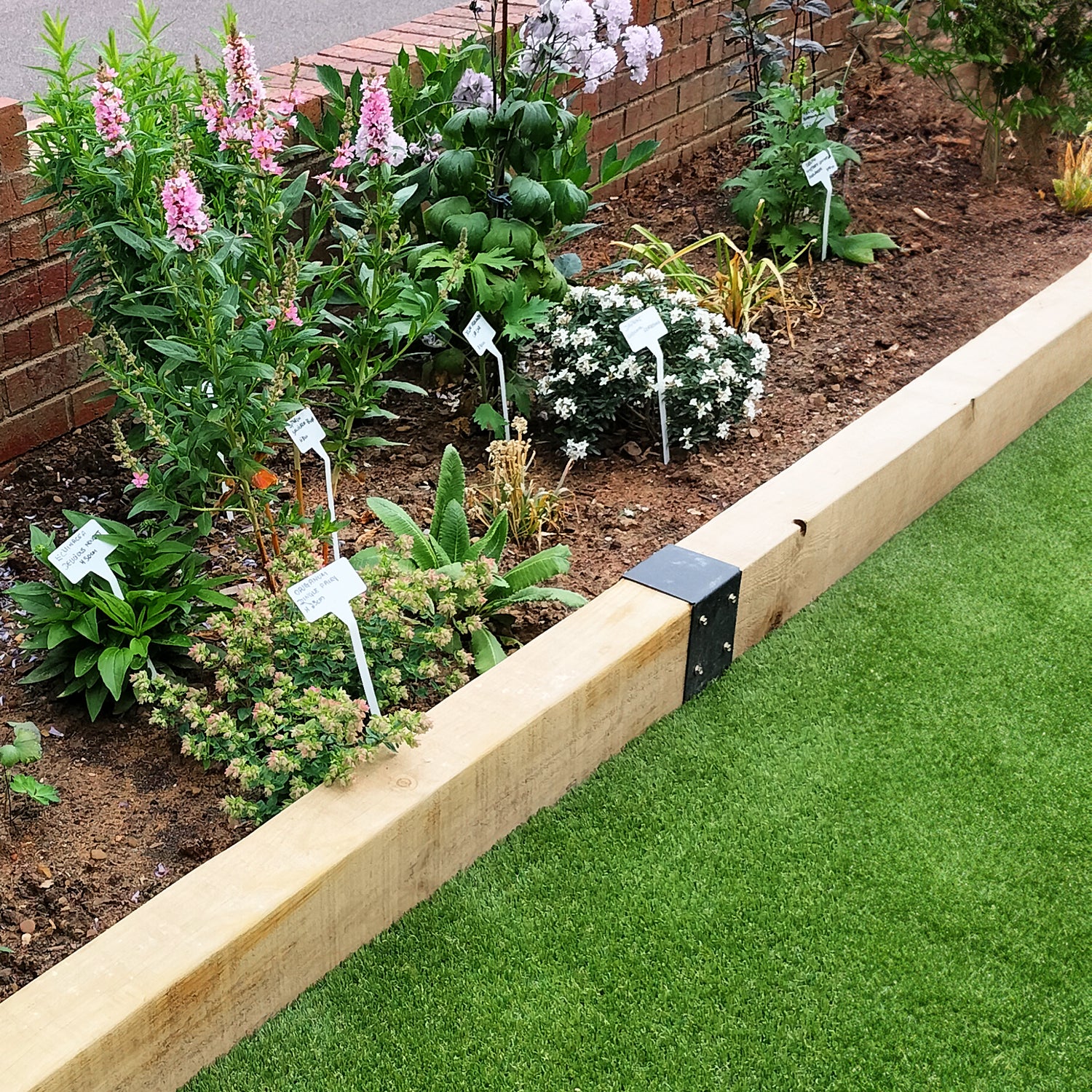

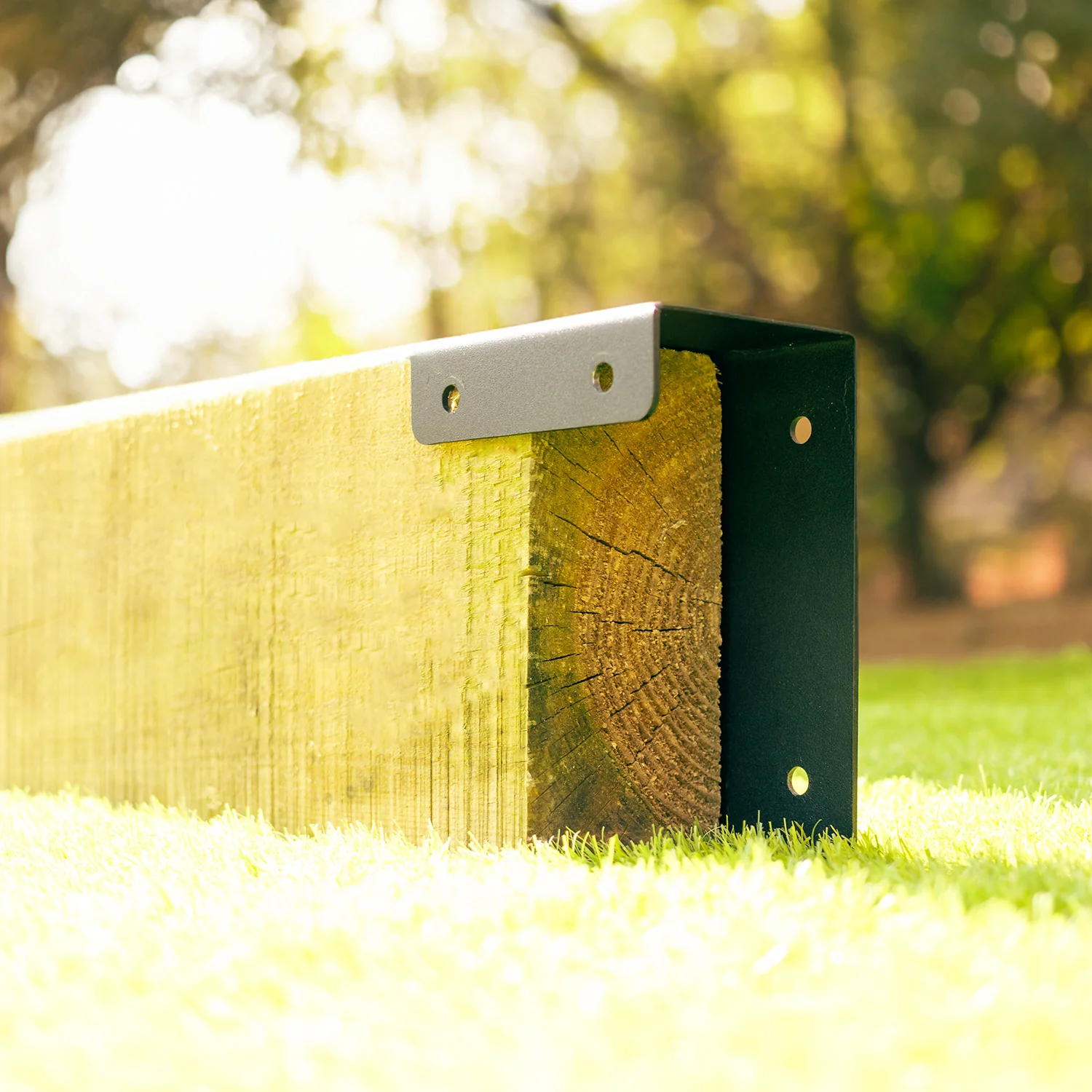

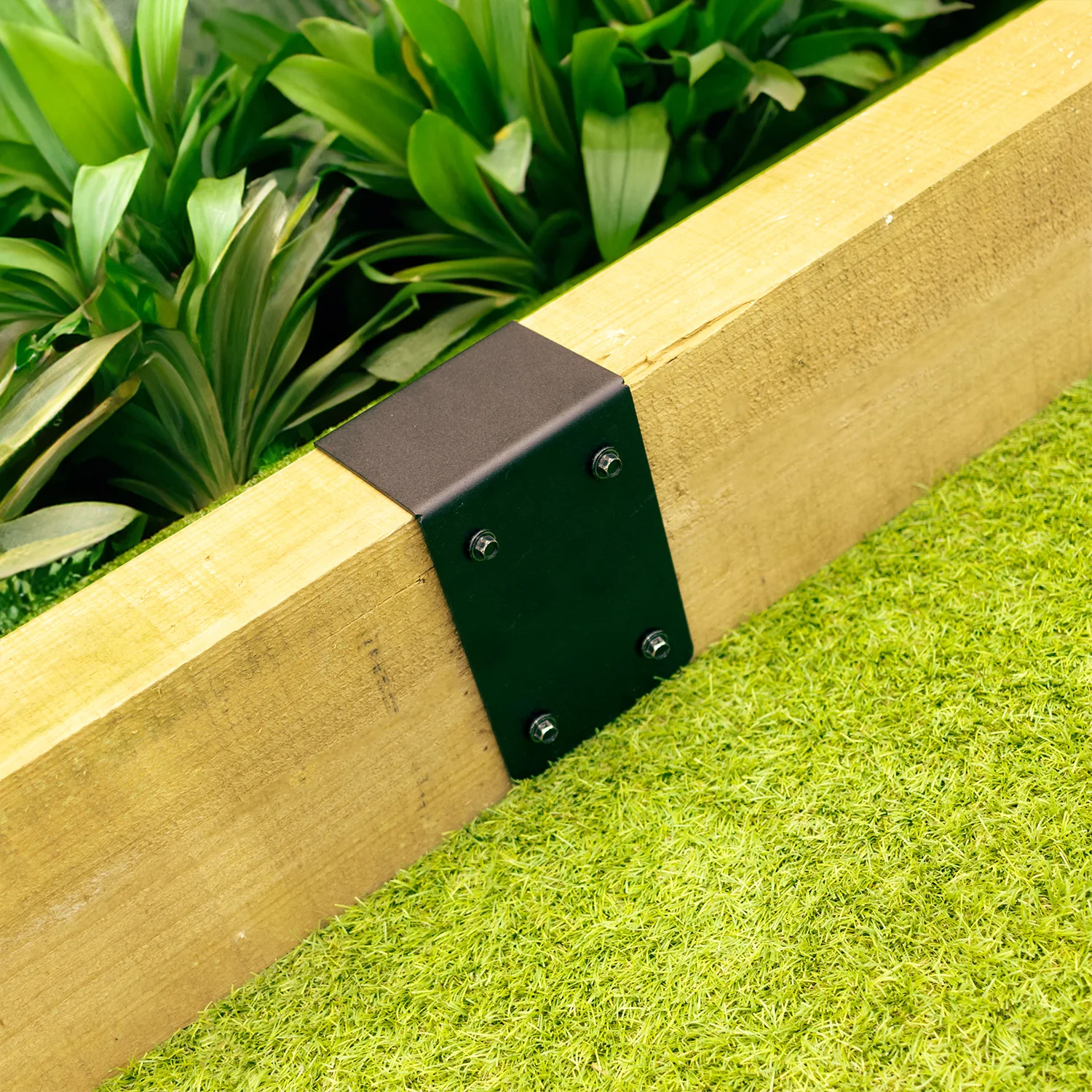

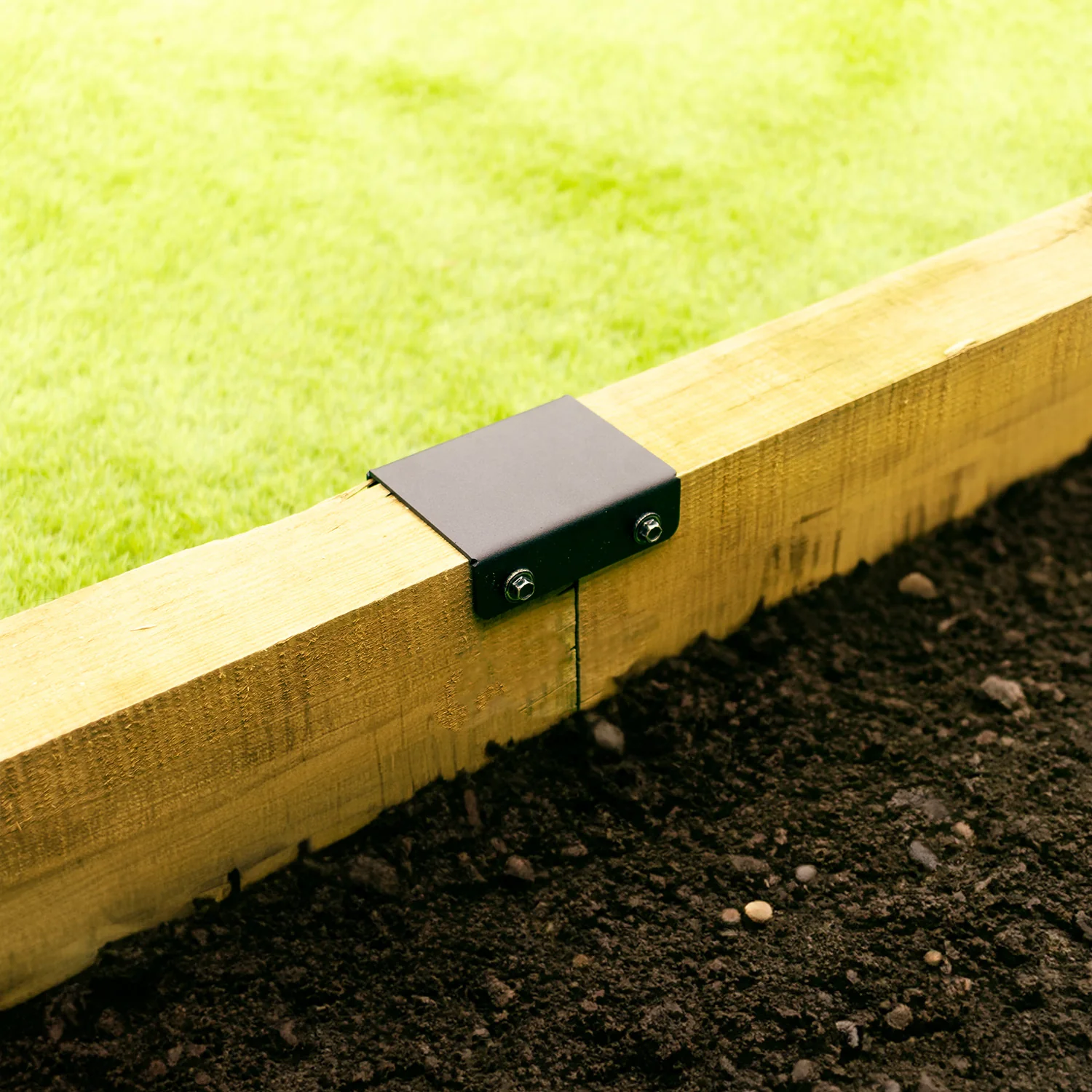

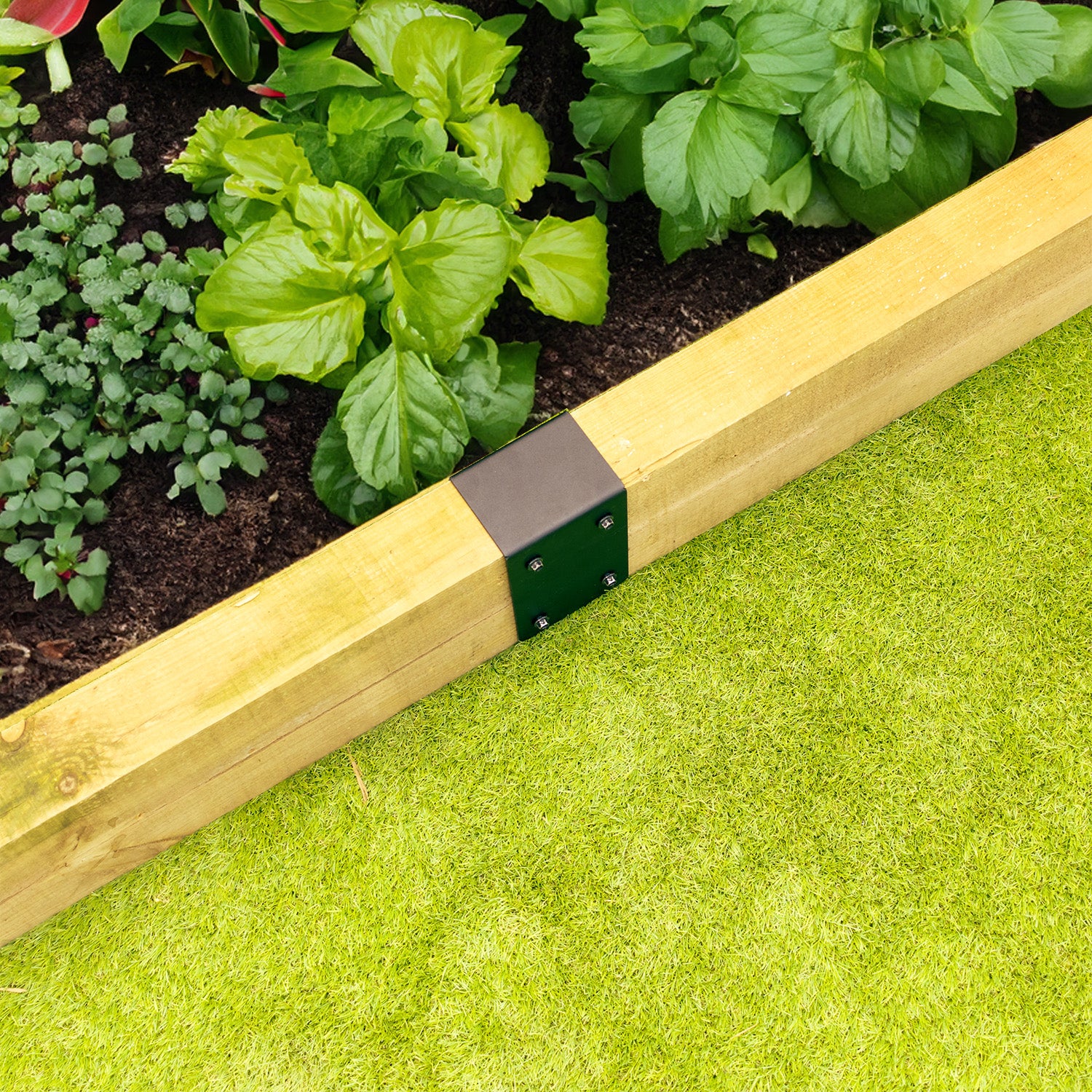

To install, simply align the bracket over the join between two railway sleepers. The larger face of the bracket sits flat across the joint, and the shorter top flange rests on the horizontal face of the sleeper. Use screws to fix the bracket in place. This bracket is suitable for use with a wide range of timber sizes and can be installed with basic tools in just a few minutes.

Select the style of Timber Sleeper you will be using in the options, you can choose between plates suitable for:

• 6x3 (150mm x 75mm) Timber Railway Sleepers - Perfect for our LightGauge Railway Sleepers
• 7x3 (175mm x 75mm) Timber Railway Sleepers
• 8x4 (200mm x 100mm) Timber Railway Sleepers
• 7.5x5 (190mm x 125mm) Timber Railway Sleepers
• 8x2 (200mm x 50mm) Timber Railway Sleepers
• 9x5 (225mm x 125mm) Timber Railway Sleepers
• 10x5 (250mm x 125mm) Timber Railway Sleepers
• 10x6 (250mm x 150mm) Timber Railway Sleepers

These railway sleeper joining plate brackets have been designed in the United Kingdom. Each one is manufactured at our premises in Norfolk.

Key Features:

• Straight join support – Designed for joining two timber sleepers securely at a straight edge
• Strong and simple – 2mm steel body with 7 x 7.5mm holes for quick, secure fixing
• Tough coating – Black powder-coated for a durable, weather-resistant finish
• Fast installation – Fix directly to timber with standard wood screws
• Made in the UK – Manufactured using British steel at our UK factory

Railway Sleeper Plate Dimensions:

• ID029 (for 8x4 Sleepers): 200mm Height x 108mm Depth x 112mm Width
• ID013 (for 7x3 Sleepers): 180mm Height x 85mm Depth x 100mm Width
• ID672 (for 7.5x5 Sleepers): 190mm Height x 130mm Depth x 100mm Width
• IDA1751 (for 6x3 Sleepers): 150mm Height x 77mm Depth x 100mm Width
• IDC3013 (for 9x5 Sleepers): 225mm Height x 129mm Depth x 125mm Width
• IDC3014 (for 10x5 Sleepers): 250mm Height x 129mm Depth x 125mm Width
• IDC3015 (for 10x6 Sleepers): 225mm Height x 154mm Depth x 150mm Width
• IDC3016 (for 8x2 Sleepers): 200mm Height x 54mm Depth x 100mm Width
